360,000 BTU Stainless Steel Tube and Shell Heat Exchanger for Pools/Spas os

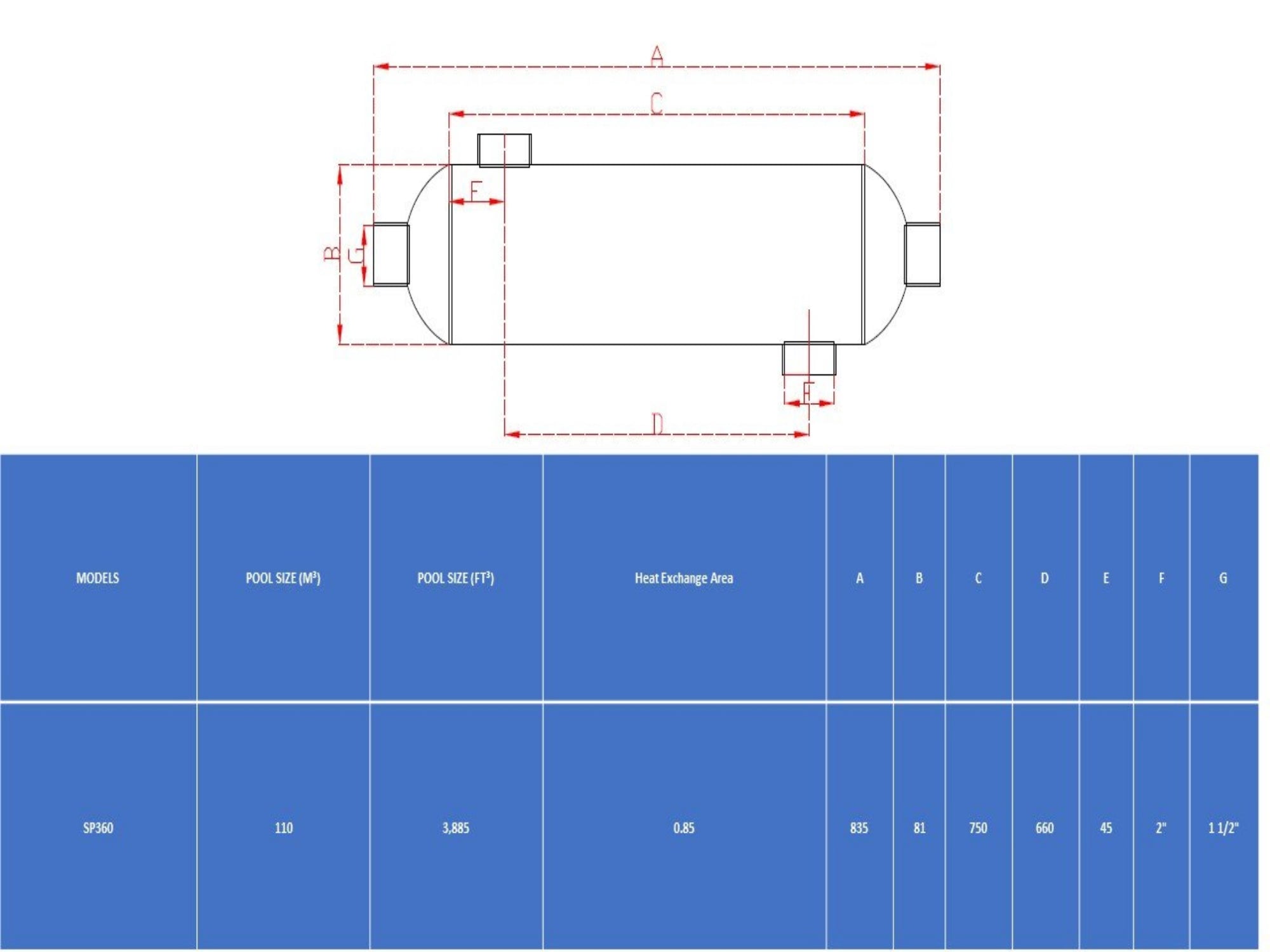

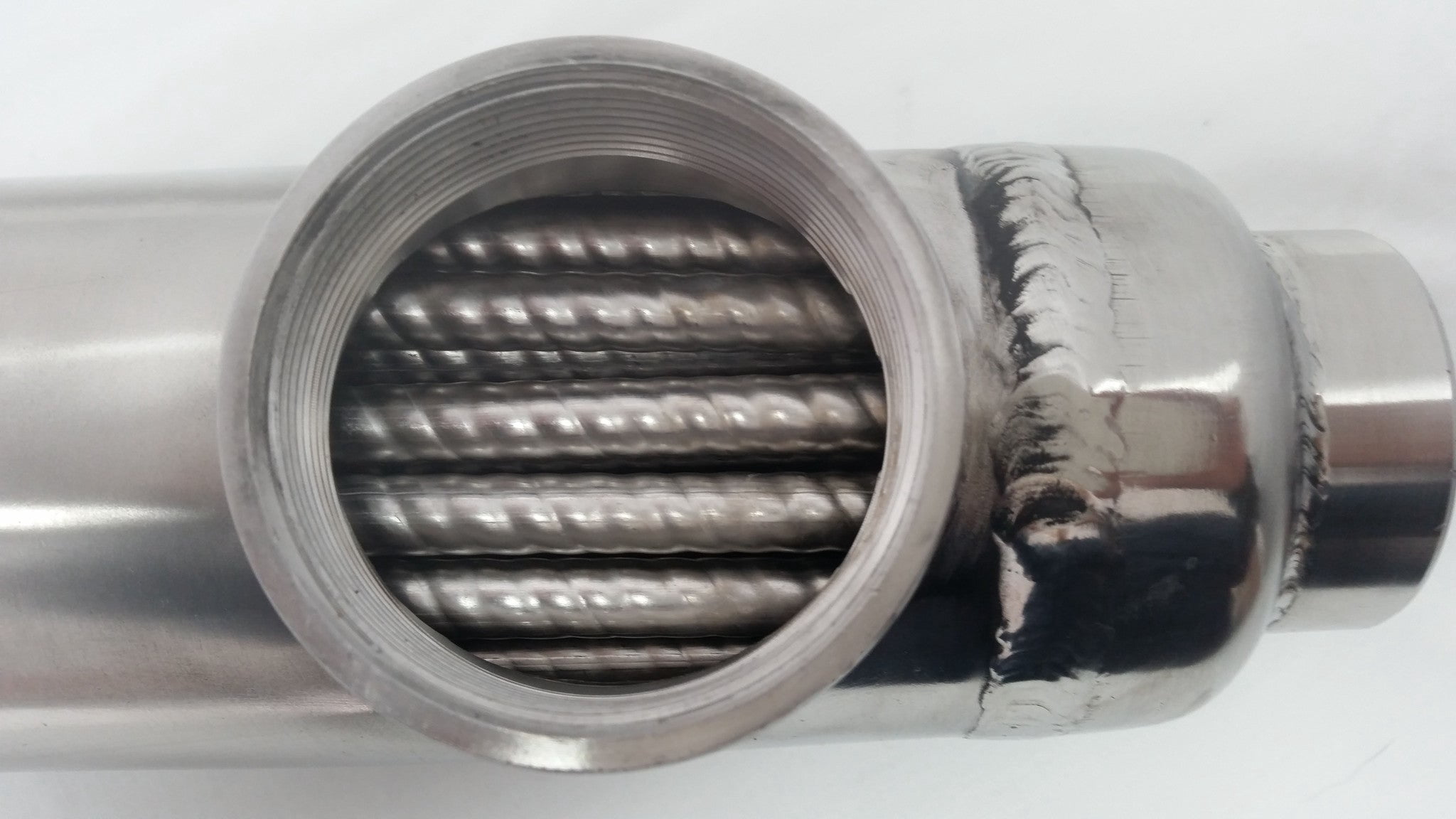

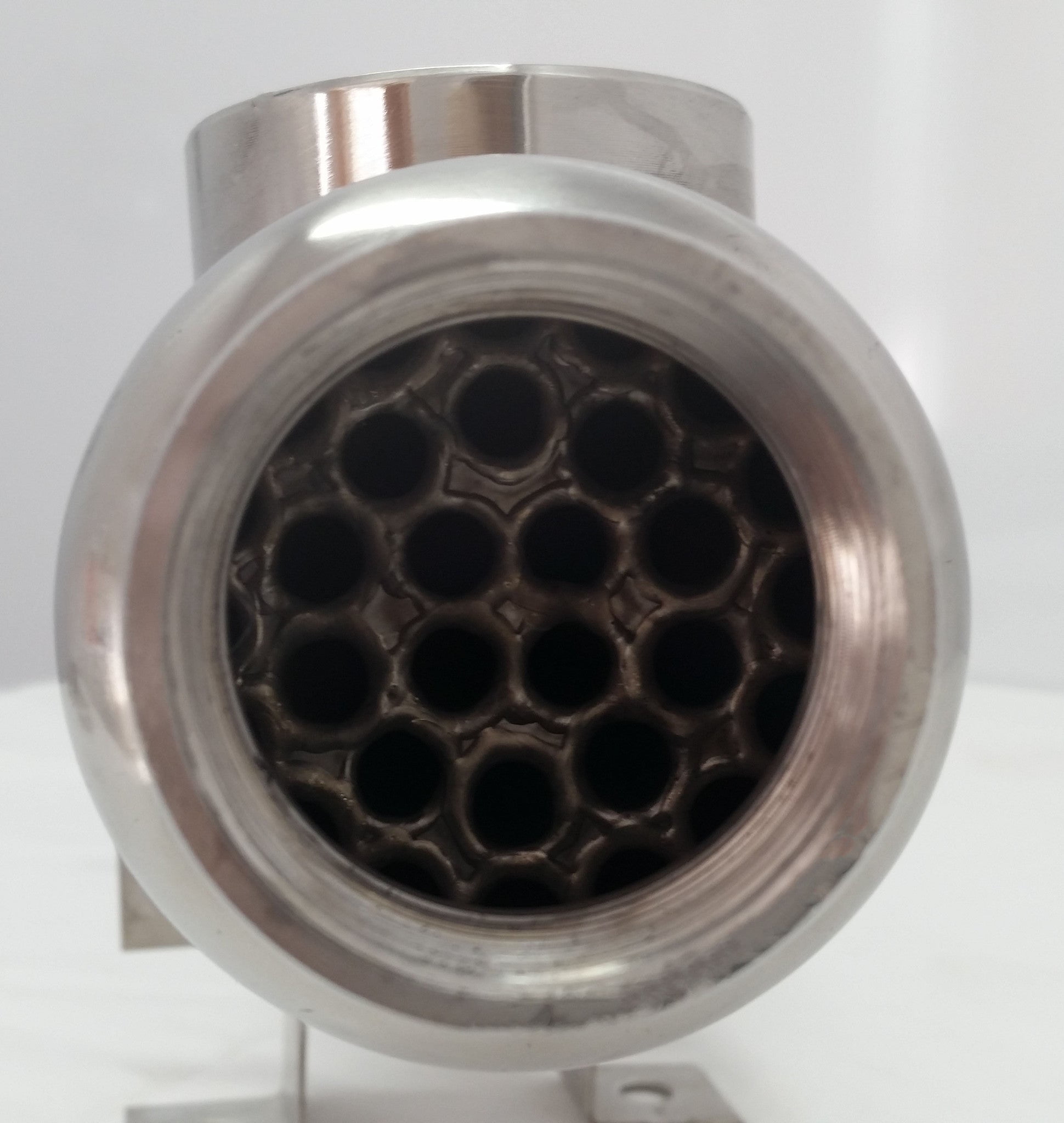

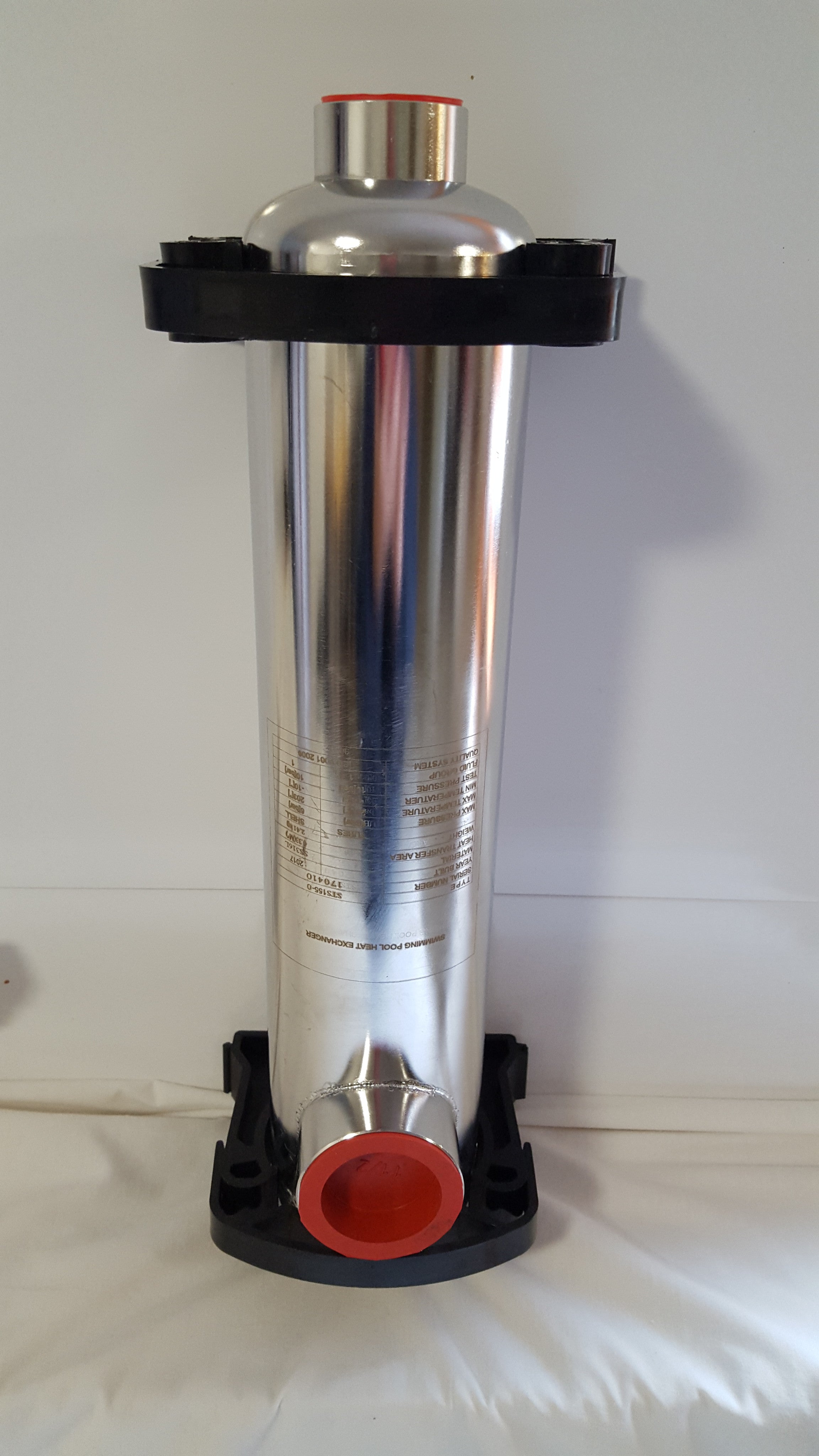

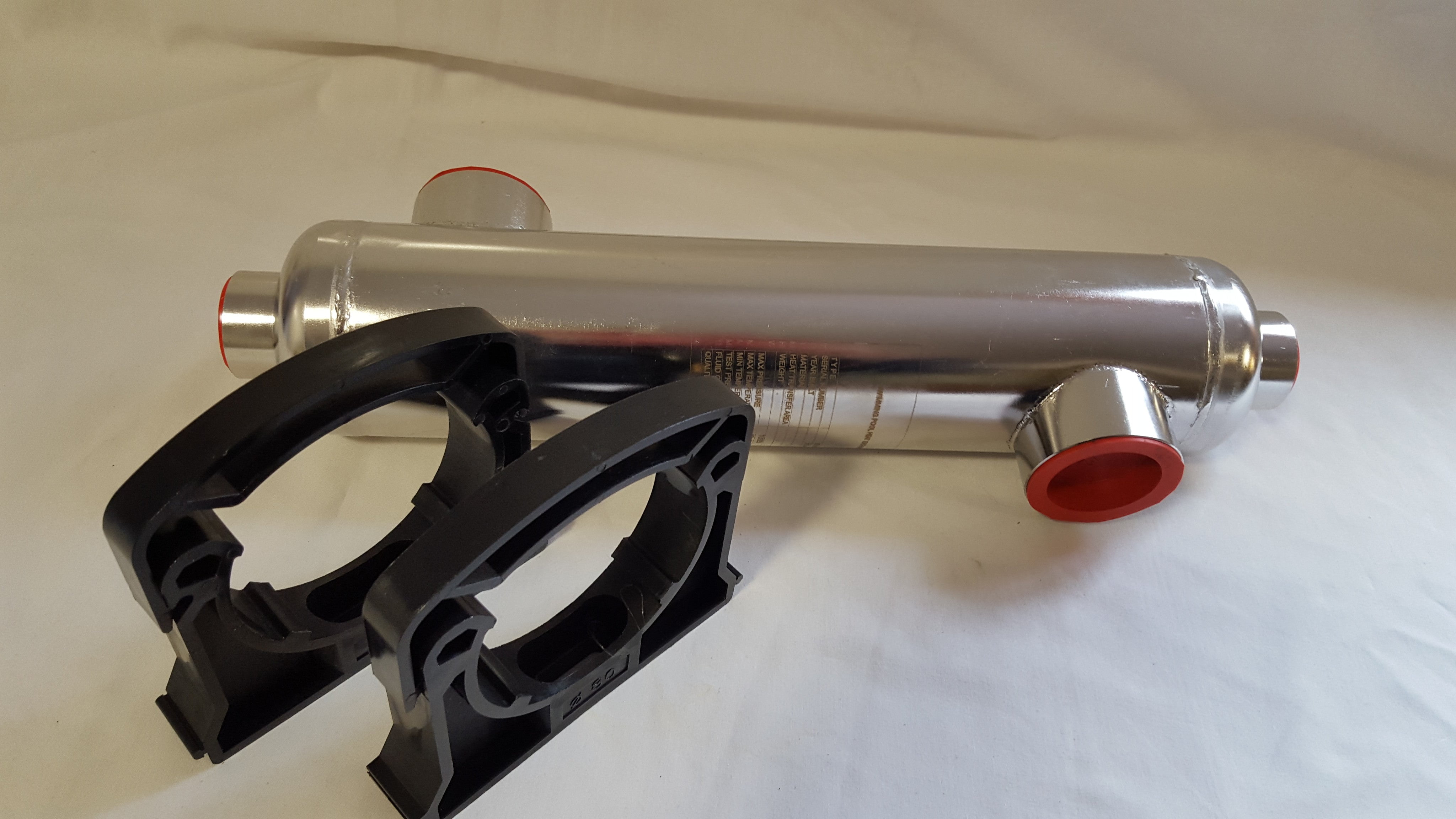

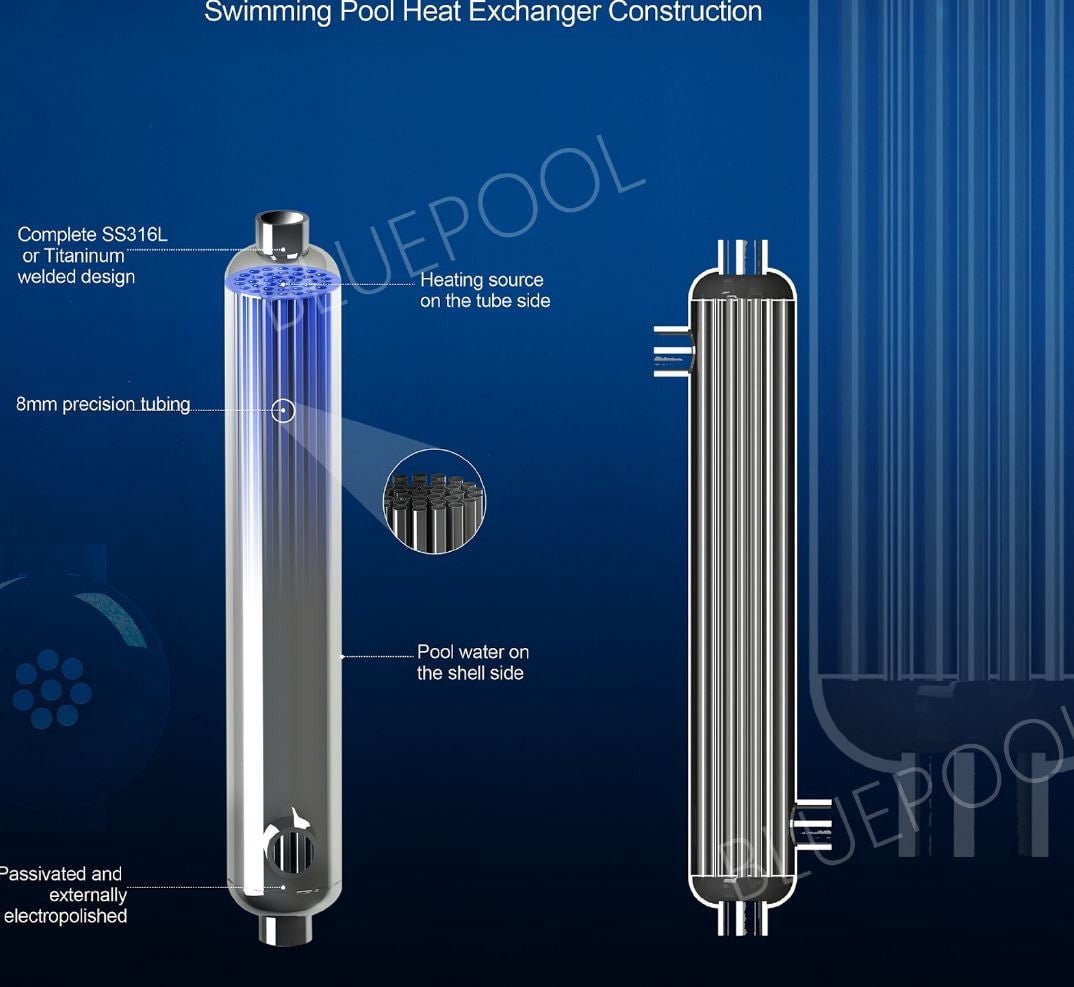

360,000 BTU Stainless Steel Tube and Shell * Opposite Side Ports * GPM Boiler Side – 12.63 * GPM Pool Side – 94.70* Boiler Ports – 11/2" NPT * Pool Ports - 2" NPT * Diameter – 3 3/16 " * Length – 34 15/16" * Number of Tubes - 36 * PSI Drop Hot – .85 * PSI Drop Cold – 2.40 * Working Pressure - 80 PSI * BTU rated with 180F Boiler and 80F Pool This unit is suitable for pools/spas that are 30,960 gallons. These heat exchangers are constructed with a stainless steel 316L shell and stainless steel 316L corrugated inner tubes to ensure high velocities inside the unit. This is a very reliable, efficient and cost effective way to transfer heat indirectly between any boiler circuit and any pool or spa circuit.

1. GPM BOILER SIDE – 12.63

2. GPM POOL SIDE – 94.70

3. BOILER PORTS – 11/2" NPT

4. POOL PORTS - 2" NPT

5. WORKING PRESSURE - 80 PSI

6.  BTU RATED WITH 180F BOILER AND 80F POOL
