ASSORTS Design Patent Taper Turning For Lathe Tailstock w/Live & Dead Center options(Morse Taper MT2)
Product details
| Management number | 210012106 | Release Date | 2026/04/02 | List Price | $36.80 | Model Number | 210012106 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

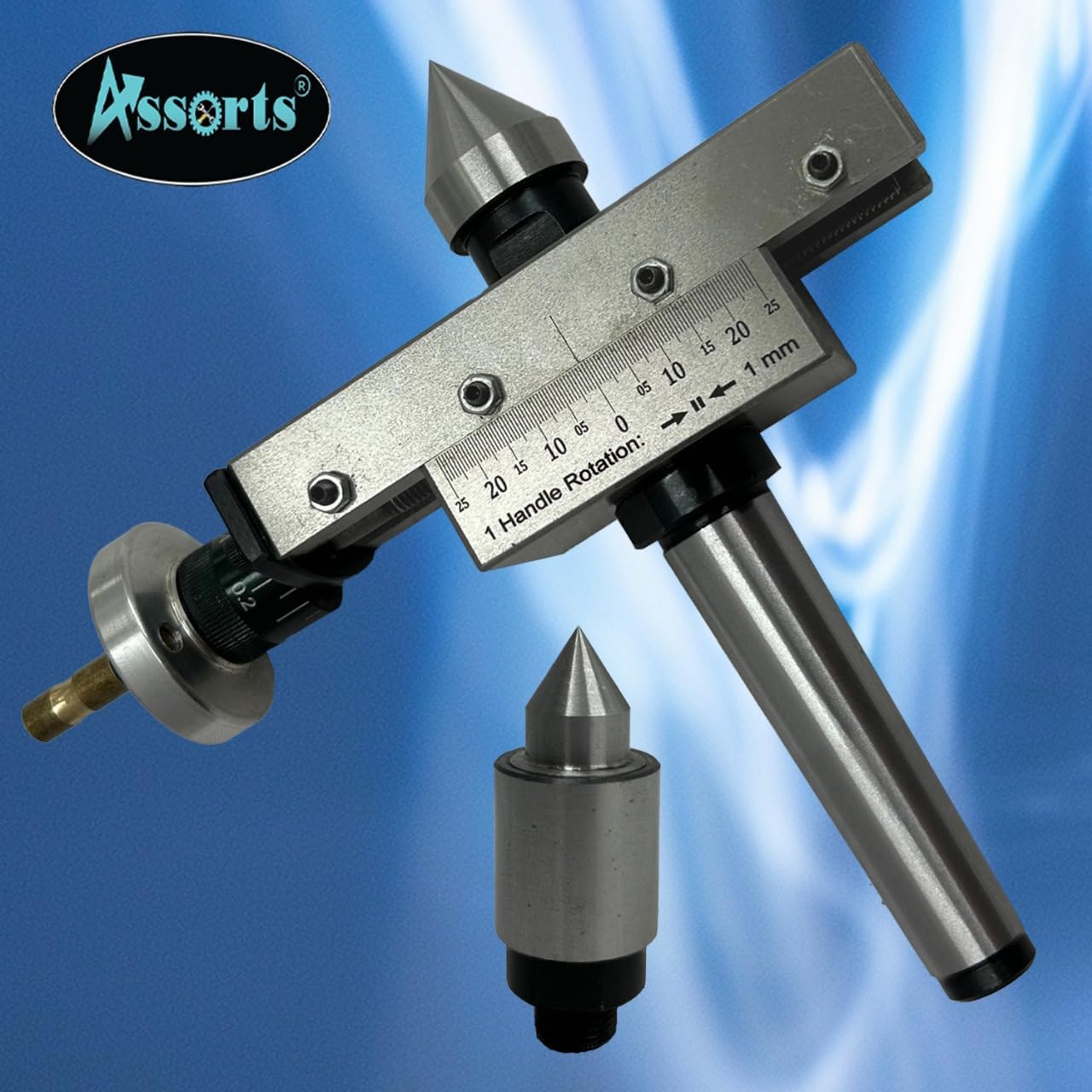

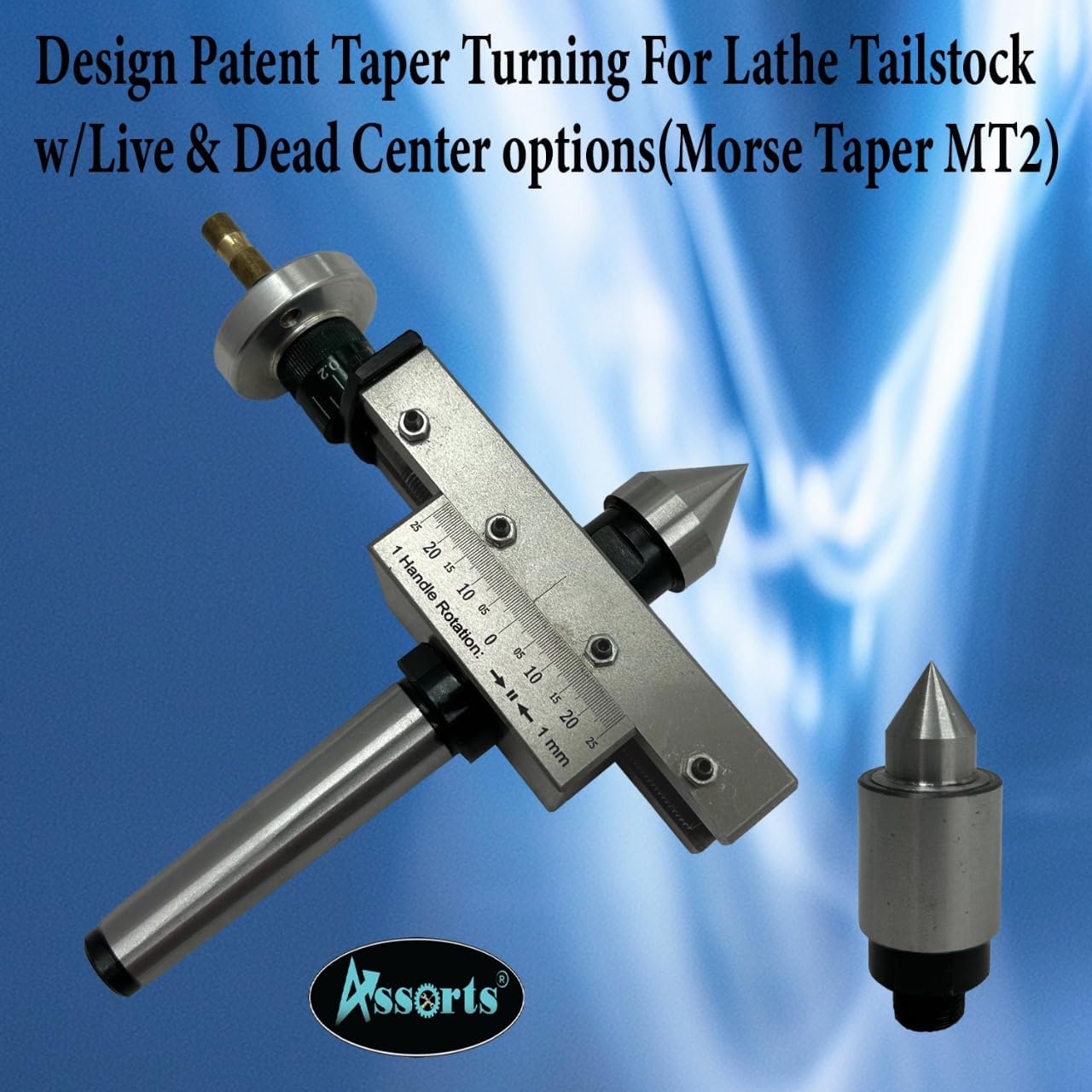

Made out of casting and tool steel, much improved and precise quality of taper turning attachment than our previous model , is available in Morse taper MT 1, 2 ,3 & 4 shanks. This new design gives you the freedom from old traditional method of off-setting the tailstock of your lathe , when you wanted to do the metal /wood turning in a taper profile. This comes with 2 different options to chose between a dead and a double bearing live revolving center on the front to hold the work-piece from center. The center point is hardened & precisely ground The attachment's slides movement is control through a fine metric thread screw, and can be shifted 25 mm left & right using the handle rotation. Pls note that the 1 handle rotation will off set the attachment by 1 mm The attachment's slide is provided with a brass gib for fine movement and adjustment & locking through the slide's screws & bolts. Supplied with spare and interchangeable Live revolving and dead center options that can be interchanged with each other as per user's requirements. Complete set comes packed in a plastic suitcase for better life and safety of the product.
- Made out of casting and tool steel, much improved and precise quality of taper turning attachment than our previous model , is available in Morse taper MT 1, 2 ,3 & 4 shanks.
- This new design gives you the freedom from old traditional method of off-setting the tailstock of your lathe , when you wanted to do the metal /wood turning in a taper profile.
- This comes with 2 different options to chose between a dead and a double bearing live revolving center on the front to hold the work-piece from center. The center point is hardened & precisely ground
- The attachment's slides movement is control through a fine metric thread screw, and can be shifted 25 mm left & right using the handle rotation.
- Pls note that the 1 handle rotation will off set the attachment by 1 mm
- The attachment's slide is provided with a brass gib for fine movement and adjustment & locking through the slide's screws & bolts.
- Supplied with spare and interchangeable Live revolving and dead center options that can be interchanged with each other as per user's requirements.
- Complete set comes packed in a plastic suitcase for better life and safety of the product.
| Size | Morse Taper MT2 |
|---|---|
| Color | Metallic |
| Style | Taper Turning |
| Finish | Ground Finish |
| Material | Tool Steel |
| Item Weight | 3.72 pounds |
| Part Number | ALNFC2ITCZZ1 |
| Manufacturer | Assort Machine Tools Co |
| Power Source | hand_powered |
| Number Of Pieces | 1 |
| Special Features | Shank is detachable & can be interchanged with any other Center |
| Item model number | PTTMT2 |
| Batteries Included | No |
| Batteries Required | No |
| Measurement System | English/Standard |
| Package Dimensions | 10.63 x 8.78 x 2.99 inches |
| Included Components | 1Pcs taper Turning & Spare Interchangeable Center |
| Item Package Quantity | 1 |
